Understanding Masking, Enabling, and Disabling of Logic Gates

In digital electronics, logic gates are the basic building blocks of all digital systems. But did you know that we can control whether a gate actively participates in a circuit using masking, enabling, and disabling techniques? These are crucial concepts, especially when working with multiplexers, tri-state buffers, and control logic.

Let’s break it down in simple terms.

What is Masking in Logic Gates?

Masking is a method of controlling the output of a logic gate by using a specific input value (often 0 or 1) to “mask” or block the effect of another input. It's widely used in data handling, interrupt systems, and bitwise operations.

Example: AND Gate Masking

  • Let A = input signal

  • Let B = mask

  • Output = A AND B

    • If B = 1 → Output = A (no masking)

    • If B = 0 → Output = 0 (signal is masked)

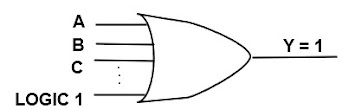

Example: OR Gate Masking

  • Let A = input signal

  • Let B = mask

  • Output = A OR B

    • If B = 0 → Output = A (no masking)

    • If B = 1 → Output = 1 (signal is masked)

This is especially useful in bitwise masking operations in microcontrollers or digital processors.

Enabling of Logic Gates

Enabling means allowing a gate or circuit to function. In many digital systems, control signals are used to enable a gate.

Example:

  • In tri-state buffers, a control line (Enable pin) determines whether the output is active:

    • Enable = 1 → Gate functions normally

    • Enable = 0 → Output is high-impedance (Z state)

This allows multiple devices to share a common output line without interference.

Disabling of Logic Gates

Disabling is simply the opposite of enabling — it prevents the gate from affecting the circuit. The output is often forced to a specific state or to high-impedance (Z).

Example:

  • In a multiplexer, only the selected gate is enabled; others are disabled.

  • In bus systems, only one device is enabled at a time to avoid data clashes.

Applications of Masking, Enabling, and Disabling

  • Data buses in microcontrollers

  • Interrupt handling (masking interrupts)

  • Access control in memory systems

  • Multiplexed systems (MUX, DEMUX)

  • Tri-state logic and I/O ports

Overview
