Understanding Simplex, Half Duplex & Full Duplex Communication in the Modern World

Communication is the backbone of human interaction and technology.

Whether it’s a casual chat, a business transaction, or a complex data transfer, the mode of communication plays a crucial role in defining efficiency. Broadly, communication can be classified into Simplex, Half Duplex, and Full Duplex systems. But what do these terms really mean, and how do they fit into our everyday lives? Let’s break them down with examples that you encounter daily!

1. Simplex Communication – One Way Street➡️

Imagine a highway where traffic moves in one direction and never reverses course—that’s simplex communication in a nutshell. In this system, information flows only in one direction, meaning the sender transmits data, but the receiver cannot respond.

Real-Life Example: Radio & Television Broadcasting📻📺

When you listen to the radio or watch television, you receive signals from the broadcasting station. However, you cannot send data or talk back to the broadcaster. You are just a passive receiver. This is simplex communication at play—efficient, but strictly one-way.

Other Examples:

  • Digital billboards displaying advertisements

  • Emergency broadcast systems

  • Barcode scanners at a store

2. Half Duplex Communication – Talk, Pause, Listen➡️🛑⬅️

Half Duplex communication is bi-directional, but only one party can communicate at a time. Think of it like a walkie-talkie: when one person talks, the other must wait before responding.

Real-Life Example: Walkie-Talkies & Push-to-Talk Systems

Police officers and military personnel often use walkie-talkies for communication. A button must be pressed to speak, and when released, the receiver can reply. This prevents interruptions and allows clear transmissions, ensuring only one person speaks at a time.

Other Examples:

  • CB radios used by truck drivers

  • Customer support chatbots where one message must be responded to before sending another

  • Old landline intercom systems where one side speaks before the other responds

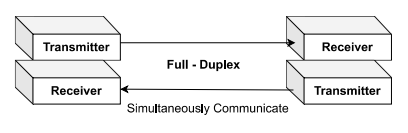

3. Full Duplex Communication – Free-flowing Conversation↔️

Now, imagine a busy road where vehicles move freely in both directions—that’s full duplex communication! Here, both sender and receiver can talk and listen simultaneously, allowing a continuous flow of information.

Real-Life Example: Mobile Phones & Video Calls📱💬

When you make a phone call, you can speak while listening to the other person at the same time. There are no interruptions, making full duplex communication the most efficient for real-time conversations. Similarly, video conferencing platforms like Zoom or Microsoft Teams enable seamless communication without taking turns.

Other Examples:

  • Live customer service calls

  • Internet-based voice chats (VoIP)

  • Fiber-optic data transmission

🧠Final Thoughts – Why Does This Matter?

Understanding these communication types isn't just theoretical—it helps in designing better technologies, improving business efficiency, and enhancing interpersonal communication methods. Whether you're watching TV, using a walkie-talkie, or making a phone call, you're interacting with one of these systems!

So, next time you pick up a walkie-talkie or chat with a friend over the phone, take a moment to appreciate how communication technology has evolved.

There’s another fascinating aspect of communication: signals! In our next blog, we’ll dive into low-frequency and high-frequency signals, explore their frequency ranges, and uncover how different types of signals are transmitted. Plus, we’ll take a first look at analog modulation, a crucial technique that enables radio, television, and telecommunication systems to function.

Stay tuned for a deep dive into the science behind how our modern world stays connected! 🚀 Follow hobitronics.blog for more!!
